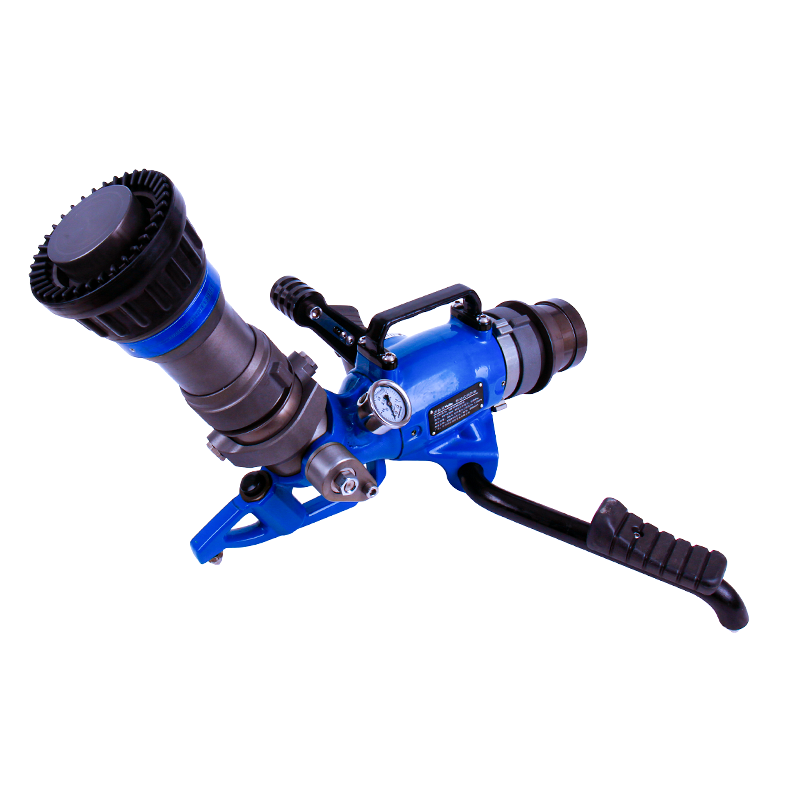

Products in line with GB 19156-2019 "fire artillery" standard

Material of gun body: ZLD104 aluminum alloy.

Material of n-type handle: ZLD104 casting aluminum alloy, with black spraying surface.

Material of valve core: forged brass

Material of valve ball: stainless steel

Ball gasket: PTFE sintered at high temperature.

Fixing screws and nuts: stainless steel or brass screws

Protective sleeve material: nylon 66

Rubber of seal: aging-resistant rubber

Support foot material: 6061 aluminum alloy foldable S-type round support foot; with steel foot nails

Switch performance: upper and lower spring sliding locking switch, can be opened or closed with one hand under the locking condition.

Safety rope: equipped with 2 length ≥ 10m safety rope

Pressure gauge: The pressure gauge is set in the main channel of the water inlet of the gun. The accuracy of pressure gauge is 2.5 grade.

Standard equipped with quick disassembly foam tube foaming tube

The overall weight of the gun is 13kg

Material of the gun body: ZL104 aluminum alloy (anodic hard oxidation after spraying treatment)

Through the manual conversion of DC and spray function of the fire gun, in the conversion operation, the operating torque: 8.0N.m

Through the operating lever for horizontal pitch slewing manual operation of the operating torque: horizontal: 6.24 N-m, pitch: 7.56 N-m

Spray angle: 0~120 degrees adjustable

Angle of elevation of fire gun:+30°～+70°.

Horizontal rotation angle (°):40 22、Self-swing angle (°):40 23、Self-swinging frequency (times/min) 14×(1±20%):14.3

Jet rated working pressure 0.8MPa

Flow rate:30L/s 26、Range: 63.5m

Inlet: KY80Z forged inner buckle interface

Gun head technology: the whole aluminum alloy processing and molding and rubber injection mold spray teeth one-piece molding

Standard with foam generator cylinder, with one-way valve 360 degree rotation double head 65mm card type male water inlet, KYYA80Z male pipe teeth interface

Mark: the product has a permanent Chinese nameplate

Provide the inspection report issued by national authoritative organization.
