Standard: GB 8181-2005 "fire water gun" standard.

Multi-functional water-compressed air foam gun: Fracture state can be out of compressed air foam, adjustable flow rate of water injection.

Modes: straigt stream, spray and fog.

Under the condition of foam device, it can produce high quality foam with foam tube. Apply to city fire and oil, petrochemical plant fire extinguishing jets to fight;

Nozzle body material: 6061 deformed aluminum, forging process, five-axis machining center one milling shape.

Handle material: PA6 nylon plastic.

Valve stem material: brass.

Valve ball material: precision machining brass, chrome-plated surface treatment.

Valve ball seal material: PTFE seal ring high temperature sintering.

Fixing screw material: stainless steel or copper.

Water gun protective sleeve material: nitrile rubber.

Nozzle barrel protection: wear-resistant rubber protective sleeve.

Water gun sealing ring: wear-resistant anti-aging rubber.

Material of spray rotating teeth: forged brass with chrome-plated treatment.

Surface treatment: overall anodized anti-corrosion.

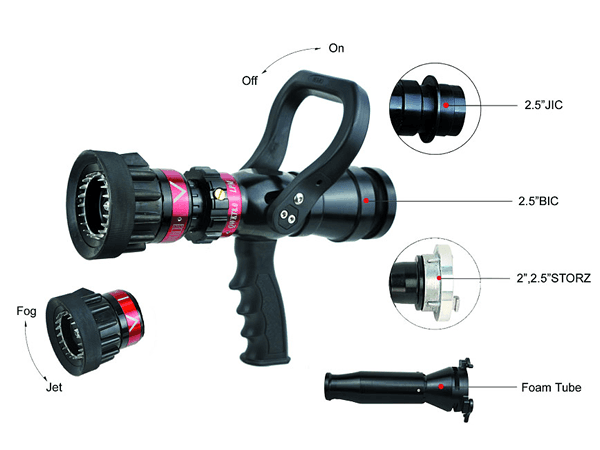

Water inlet interface: card type KYKA65Z male forging interface with thread locking structure.

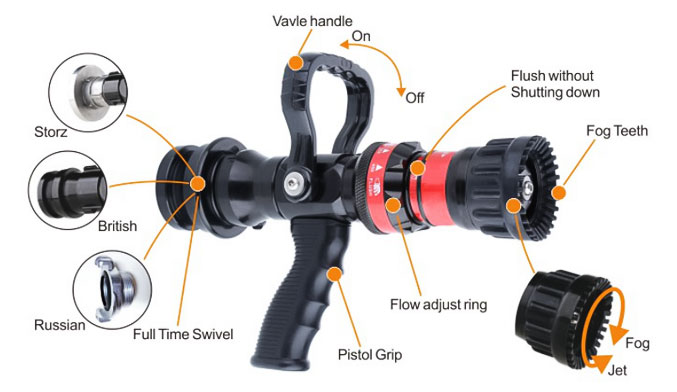

Operating lever: ∩ type, control water flow switch, with DC and full water mist mode.

Water inlet interface: 360-degree rotation to prevent the water belt from twisting and knotting.

Rated injection pressure: 0.80MPa.

Water gun gear: 5 gears

Flow rate gear range: 4/6.5/8/10/13L/s X (1 ± 8%).

Range: 37m.

Spray angle adjustment range (°): 0 ~ 120.

Weight: 3.70kg.

Operating torque: 7.7 N.m.
